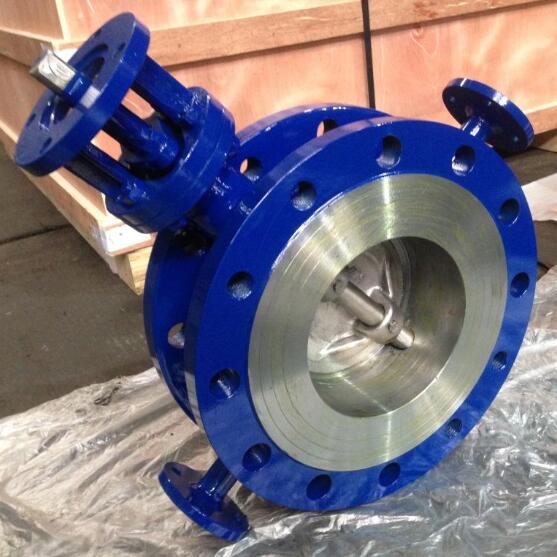

Jacketed butterfly valve with steam jacket

Model:

  • Port size:2"~48" (DN50~DN1200)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Description:China jacketed butterfly valve manufacturer,factory and supplier at best price.
Jacketed butterfly valve with steam jacket is triple eccentric,metal seated butterfly valve with steam jacket,Jacketed butterfly valve with steam jacket body on both sides of the jacket interface can contain steam or other overheating gas, in order to prevent the medium in the normal temperature of solidification or crystallization.Jacketed butterfly valve with steam jacket flange is bigger than ordinary metal hard seal butterfly valve flange to one to two specifications, Jacketed butterfly valve with steam jacketmainly used in petroleum, chemical, metallurgy, pharmaceutical and other systems.

Jacketed butterfly valve with steam jacket features:
1 Jacketed butterfly valve with steam jacket adopts three eccentric sealing structure, seat and butterfly disc almost no wear, with more and more tight sealing function.
2 the seal ring is made of stainless steel, with the dual advantages of metal hard seal and elastic seal, regardless of the low temperature and high temperature,Jacketed butterfly valve with steam jacket has excellent sealing performance, corrosion resistance, long service life and other characteristics.
3 The sealing surface of the Heating steam jacketed buttefly valve disc is hard faced with cobalt-based carbide, which is resistant to wear and has a long service life.
4 Jacketed butterfly valve with steam jacket adopts the structure of quilting, with high strength, large flow area and small flow resistance.
5 Jacketed butterfly valve with steam jacket has a two-way sealing function, installation is not limited by the flow of the medium, nor by the impact of the space position, can be installed in any direction.
6 The driving device of Jacketed butterfly valve with steam jacket can be installed in multiple stations (rotating 90° or 180°), which is convenient for users to use.

How to choose the types of Jacketed butterfly valve with steam jacket:
1 About the Triple eccentric jacketed butterfly valve working condition
What structure do you want to use?
What is the medium of pipeline?
Medium through pipeline working pressure ?
Medium through pipeline working temperature?
Pipeline connection size?

2 About the jacket working condition
What is the medium through Jacket, Steam or hot oil?
Medium through jacket working pressure ?
Medium through jacket working temperature
Jacket connection form (thread or flange connection)?
Jacket coupling size?  NPS1/2’’ is ok?

3 Structure and material for the whole set of Jacketed butterfly valve with steam jacket
 It is full jacket or partial half jacket design?
what material do you choose for valve and jacket?
