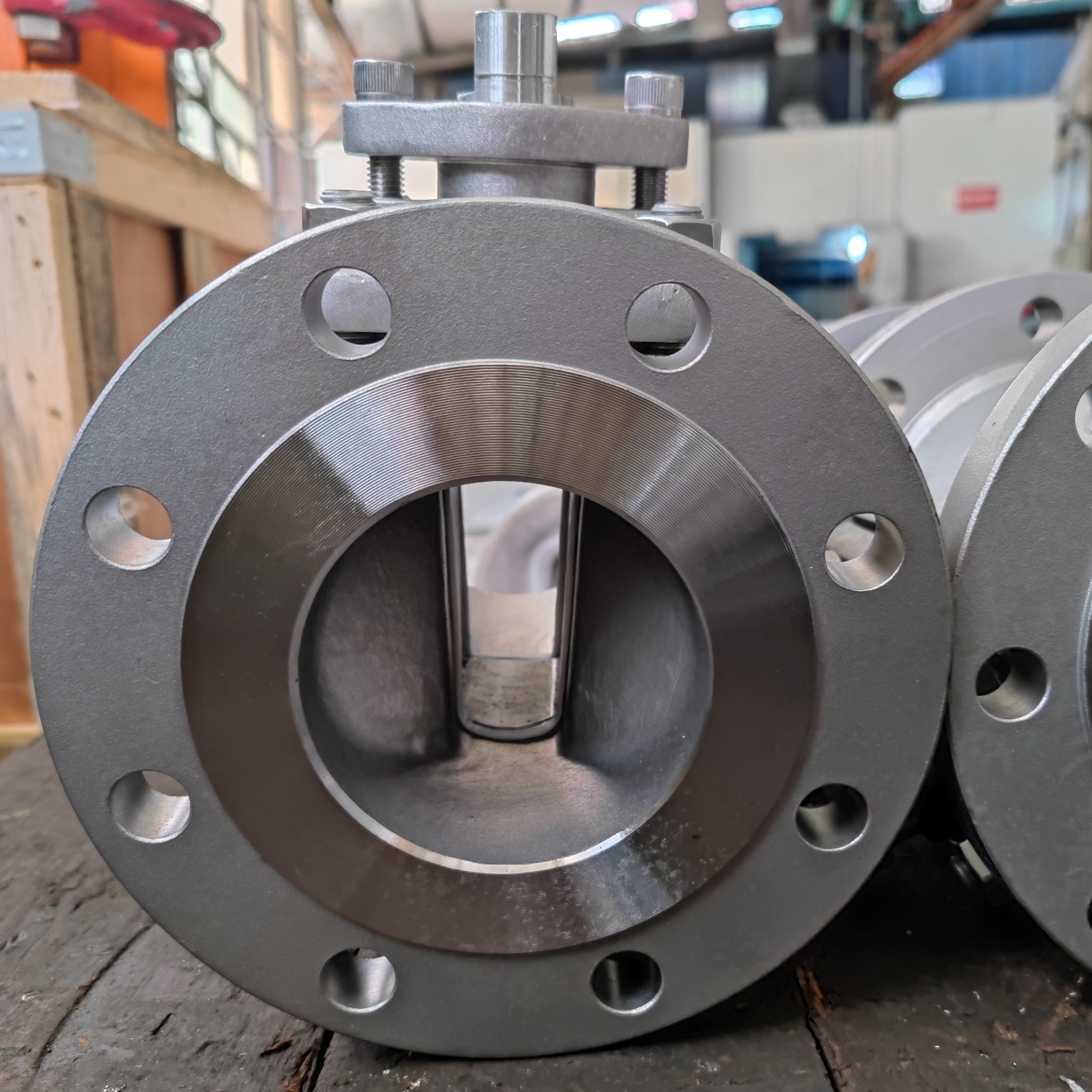

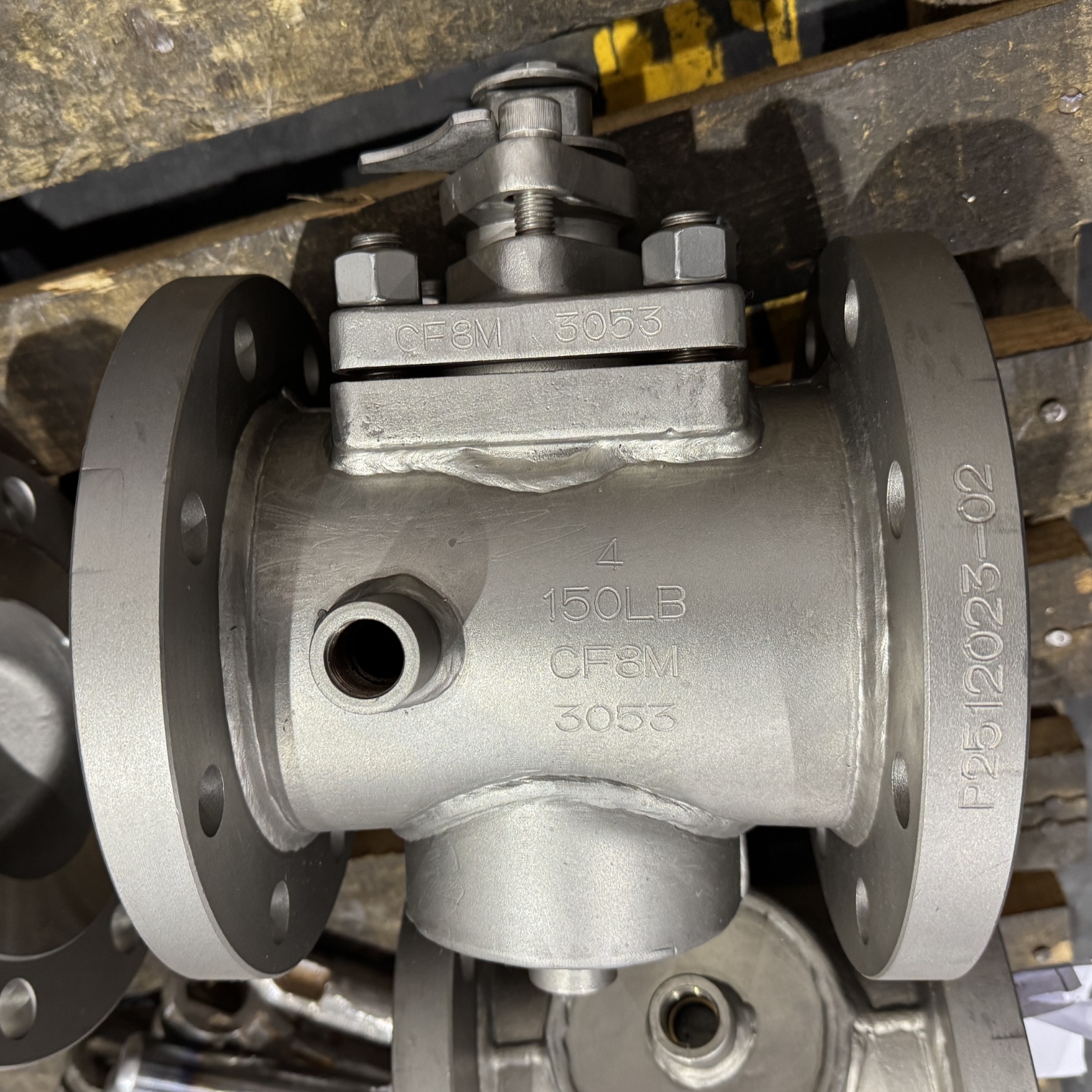

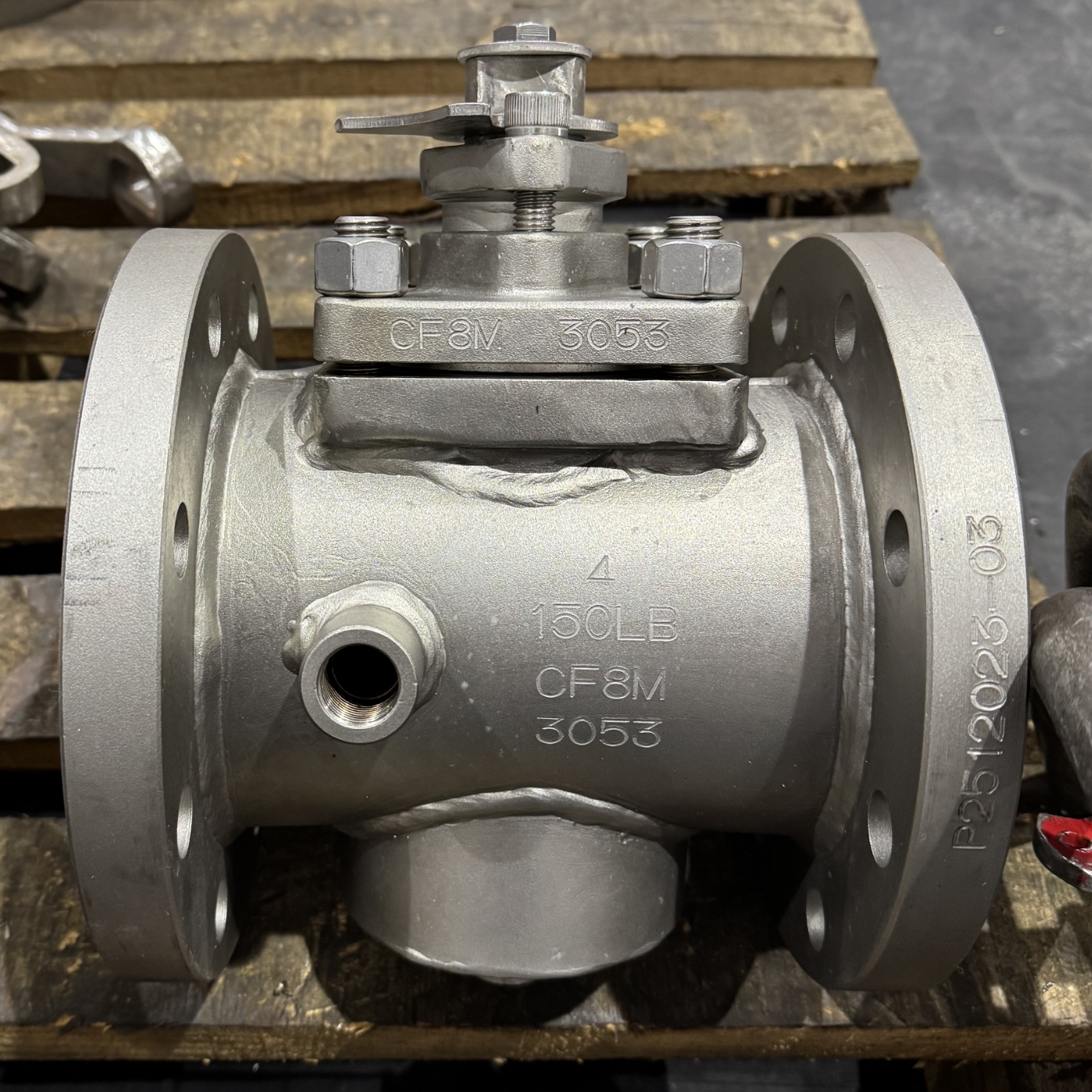

304 316 Flanged Jacketed Plug Valve Main Technical Specifications
Nominal size: DN15 – DN300
Pressure class: PN10-PN100, Class150-Class600
Medium temperature inside valve: -20℃ ~ 450℃
Jacket heat medium: steam, hot oil, cooling water
Applicable media: resin, asphalt, paraffin, syrup, molten salt, latex, crude oil, chemical crystallized liquid, chocolate slurry, glue
Seal type: PTFE lined soft seal, metal hard seal
Connection types: flanged, threaded, butt weld;
Body material: stainless steel 304, 316, 316L;
Jacket port standard: NPT/BSP thread for heat medium pipeline connection;
Drive options: manual handwheel, pneumatic actuator, electric actuator.

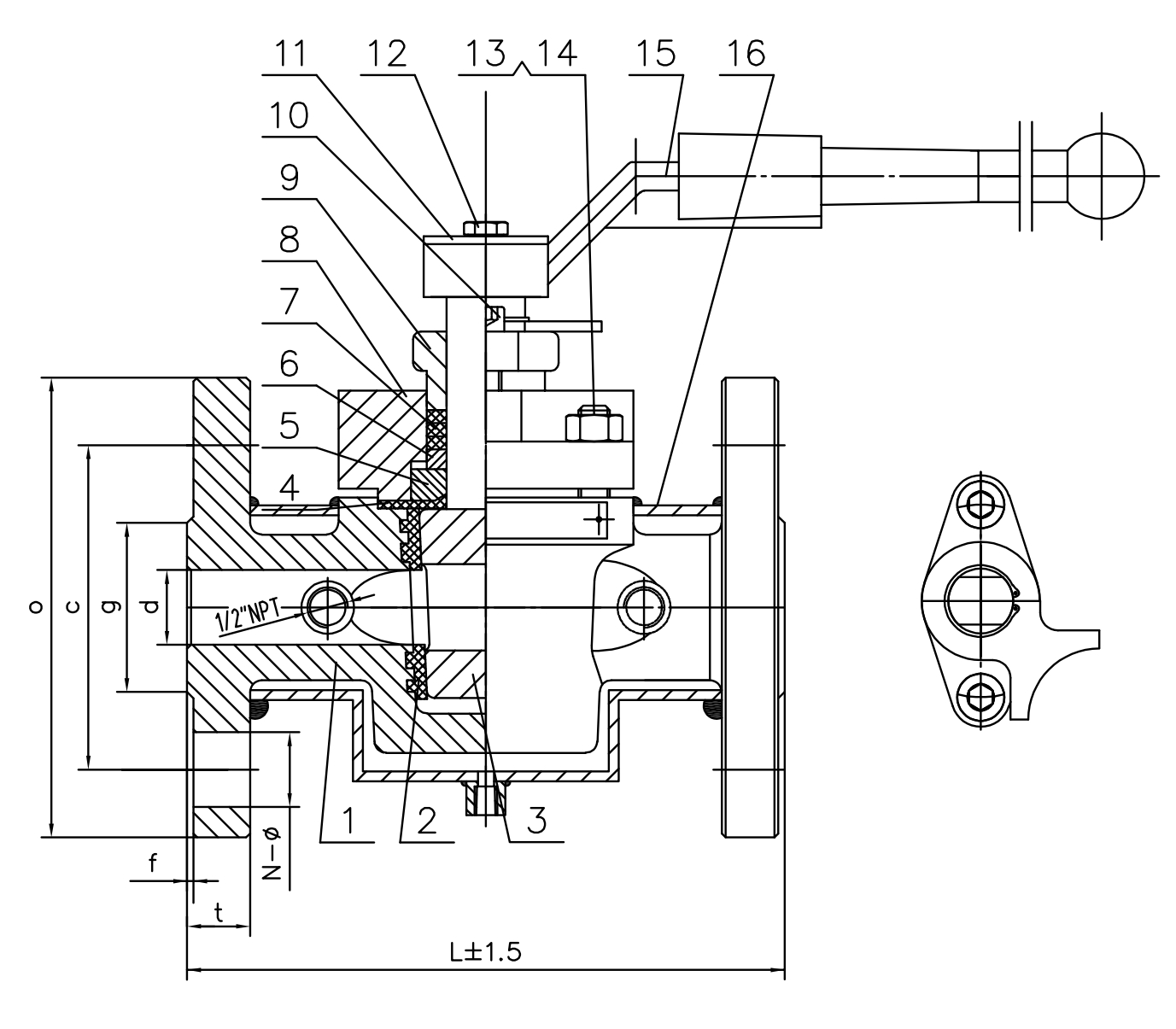

304 316 Flanged Jacketed Plug Valve Working Principle

Medium Isolation System

The cylindrical plug with straight through bore rotates 90° via hand lever, pneumatic or electric actuator to fully open or cut off the two-way pipeline flow. Full bore design ensures low flow resistance and no fluid retention dead zone.

Jacket Thermal Insulation System

Hot steam, hot oil, cooling water or heat transfer oil circulate inside the interlayer jacket surrounding the valve body. Continuous heat exchange maintains constant temperature of the medium inside the valve cavity, avoiding blockage caused by medium condensation, solidification or crystal adhesion on plug and valve seat.

2 Way Jacketed Plug Valve Advantages
1. Anti-blocking thermal jacket design: Effectively solve crystallization, waxing and solidification problems of viscous media;
2. Full straight through bore: Low pressure drop, no residual medium buildup inside cavity;
3. Reliable sealing: PTFE soft seal for normal temperature corrosive fluid; metal-to-metal seal for high temperature high viscosity working conditions;
4. Flexible temperature control: Support heating or cooling circulation according to process requirements;
5. Easy operation: 90° quick opening & closing, small operating torque;
6. Easy maintenance: Modular structure, sealing parts replaceable without full pipeline disassembly.

304 316 Flanged Jacketed Plug Valve Wide Application Industries
1. Chemical industry: Crystallizer pipelines, resin and glue delivery lines;
2. Petroleum & asphalt: Crude oil, asphalt, wax oil transmission;
3. Food & beverage: Syrup, chocolate, edible grease pipelines;
4. Pharmaceutical industry: High viscosity medicinal slurry, crystallized solvent control;
5. Heat transfer system: High temperature molten salt and heat conduction oil pipelines.
