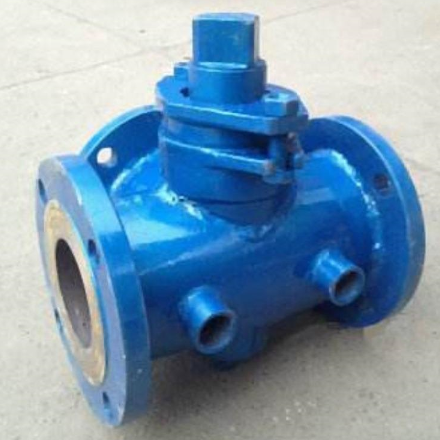

BX44H BX44W 3 Way jacket plug valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Easy crystallizating medium
  • Temperature :20~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:
  • BX44H BX44W 3 Way jacket plug valve description

    BX44H BX44W 3 Way jacket plug valve can be full jacket or partial jacket design, two way jacketed plug valve or three way jacketed plug valve is optional according to the flow direction. BX44H BX44W 3 Way jacket plug valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. BX44H BX44W 3 Way jacket plug valve is widely used in High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

    BX44H BX44W 3 WAY JACKET PLUG VALVE OPERATION: BX44H BX44W 3 Way jacket plug valve is generally supplied with manual hand lever or gear unit operated, depending on jacket plug valve size.we also offering plug valve with either Pneumatic or Electrical actuator operated for automation.

  • BX44H BX44W 3 Way jacket plug valve Technical Performance

    Design Standard BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34
    Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
    Flange To Flange Distance As Per ANSI B 16.10
    End Connection Flanged End to ANSI B 16.5, Class 150 / 300
      PN 6 / PN 10 / PN 16 / PN 25 / PN 40
      DIN Standard / JIS Standard / IS Standard
    Manufacuring Size Range 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
    Pressure Rating of Valve 150# / 300#
      PN 10 / PN 16 / PN 25 / PN 40
    Valve Operation Manual Hand Lever / Worm-Gear Operated
      Pneumatic Actuator / Electrical Actuator
    Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)
  • How to choose BX44H BX44W 3 Way jacket plug valve?

    1 About the plug valve working condition
    What structure do you want to use? Full jacket or partial jacket design.
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of BX44H BX44W 3 Way jacket plug valve
     The BX44H BX44W 3 Way jacket plug valve is full jacket or partial half jacket design?
     what material do you choose for valve and jacket?
