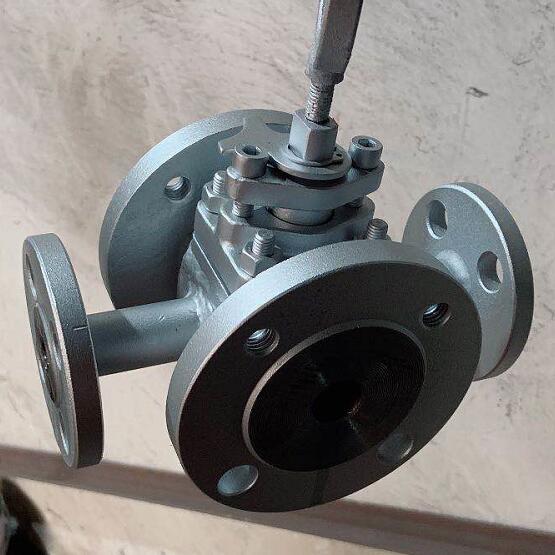

Metal seated jacketed plug valve

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:for heavy oil,glue,nitric acid,acetic acid,urea, etc.
  • Temperature :-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Description:China jacketed plug valve manufacturer,factory and supplier for soft seated and metal seated plug valve.
Metal seated jacketed plug valve is used for high temperature medium is suitable for opening and closing with nominal pressure PN1.0 ~ 10.0MPa, Class150 ~ 600, JIS10K ~ 20K, working temperature -29 ~ 425℃ (carbon steel), -40 ~ 500℃ (stainless steel) pipeline, Metal seated jacketed plug valve keep heat and prevent medium crystallization. Different materials can be used for heavy oil, glue, nitric acid, acetic acid, strong oxidizing medium and urea, etc.

Metal seated jacketed plug valve is installed in the valve body with a layer of metal jacket, through the injection of steam, heat conduction oil, cooling water, cool air and other metal jacket, so that the medium of the valve body at room temperature, heating, cooling and other conditions, to achieve the required temperature, play the role of heat preservation or cooling.Metal seated jacketed plug valve is used in the room temperature will solidify high viscosity, steam or other heat preservation, cold media, to ensure that the medium in the valve can work normally.

Metal seated jacketed plug valve parameter:

Design Standard API600/ASME B 16.34
Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance As Per ANSI B 16.10
End Connection Flanged End to ANSI B 16.5, Class 150 / 300
  PN 6 / PN 10 / PN 16 / PN 25 / PN 40
  DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
Pressure Rating of Valve 150LB,300LB,600LB
  PN 10 / PN 16 / PN 25 / PN 40 / PN64
Valve Operation Manual Handwheel
  Pneumatic Actuator / Electrical Actuator
Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)

How to choose metal seated jacketed plug valve?

1 About the ball valve working condition
What structure do you want to use?
What is the medium of pipeline?
Medium through pipeline working pressure ?
Medium through pipeline working temperature?
Pipeline connection size?

2 About the jacket working condition
What is the medium through Jacket, Steam or hot oil?
Medium through jacket working pressure ?
Medium through jacket working temperature
Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
Jacket coupling size?  NPS1/2’’ is ok?

3 Structure and material for the whole set of Metal seated jacketed plug valve?

 The steam jacketed ball valve is full jacket or partial half jacket design?
 what material do you choose for valve and jacket?
