High temperature 2 way jacketed plug valve

Model:

  • Port size:DN15-DN300
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Water,steam,oil,etc.
  • Temperature :-29~450℃
  • Body material:WCB,WC6,WC9,CF8,CF8M,etc.
  • Description:
  • High temperature 2 way jacketed plug valve description

    High temperature 2 way jacketed plug valve is for high temperature medium, this jacketed plug valve is inverted balanced structure with zero leakage, full bore design,no need enlared the flange,High temperature 2 way jacketed plug valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. High temperature 2 way jacketed plug valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

    We are High temperature 2 way jacketed plug valve manufacturer in size starts from DN15 (1/2″) to DN250 (10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. High temperature 2 way jacketed plug valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

    High temperature 2 way jacketed plug valve OPERATION: Jacketed Plug Valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering plug Valve with either Pneumatic or Electrical actuator operated for automation.

    High temperature 2 way jacketed plug valve technical performance:

    Design Standard BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34
    Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
    Flange To Flange Distance As Per ANSI B 16.10
    End Connection Flanged End to ANSI B 16.5, Class 150 / 300
      PN 6 / PN 10 / PN 16 / PN 25 / PN 40
      DIN Standard / JIS Standard / IS Standard
    Manufacuring Size Range 1" (DN 25) to 10" ( DN 250)
    Pressure Rating of Valve 150# / 300#
      PN 10 / PN 16 / PN 25 / PN 40
    Valve Operation Manual Hand Lever / Worm-Gear Operated
      Pneumatic Actuator / Electrical Actuator
    Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)
  • High temperature 2 way jacketed plug valve Material

    Cast Carbon Steel : A 216 GR WCB
    Low Temperature Carbon Steel : A 352 LCB, A 352 LCC
    Alloy Steel Chrome Moly : A 217 WC6, A 217 WC9
    Austenitic Stainless Steel : A 351 CF8, A 351 CF3,, A 351 CF8M, A 351 CF3M
    Duplex Steel 2205 : A 351 CD 3MN, A 890 J92205, S31803, S32202
    Super Duplex Steel 2507 : A 351 CD4MCu, A 890 5A, S32750
    Super Duplex F55 : A 995 CD3MWCuN, S32760
    Hastelloy C-276 : A 494 CW 2M
  • How to choose High temperature 2 way jacketed plug valve ?

    1 About the ball valve working condition
    What structure do you want to use?
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of Heating Steam Jacket Plug Valve
     what material do you choose for valve and jacket?
  • High temperature 2 way jacketed plug valve is as below:

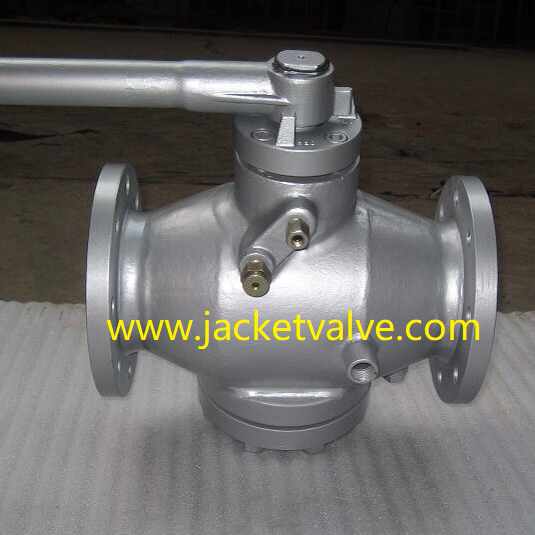

    High temperature 2 way jacketed plug valve 1 High temperature 2 way jacketed plug valve 2
