Model:

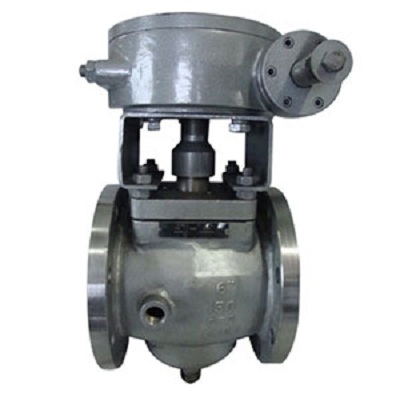

Heating Steam Jacket Plug Valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Heating Steam Jacket Plug Valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.
We are Jacketed sleeved plug valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. Heating Steam Jacket Plug Valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.
HEATING STEAM JACKET PLUG VALVE OPERATION: Heating Steam Jacket Plug Valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering plug Valve with either Pneumatic or Electrical actuator operated for automation.
Design Standard | BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34 |
Inspection & Testing Standard | BS EN ISO 12266 - I (BS 6755 - I) |
Flange To Flange Distance | As Per ANSI B 16.10 |
End Connection | Flanged End to ANSI B 16.5, Class 150 / 300 |
PN 6 / PN 10 / PN 16 / PN 25 / PN 40 | |
DIN Standard / JIS Standard / IS Standard | |
Manufacuring Size Range | 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250) |
Pressure Rating of Valve | 150# / 300# |
PN 10 / PN 16 / PN 25 / PN 40 | |
Valve Operation | Manual Hand Lever / Worm-Gear Operated |
Pneumatic Actuator / Electrical Actuator | |
Jacket Connection Type | Flanged End / Threaded End (BSP/NPT - Female) |
