Pneumatic jacketed plug valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Easy crystallizating medium
  • Temperature :20~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:
  • Pneumatic jacketed plug valve description

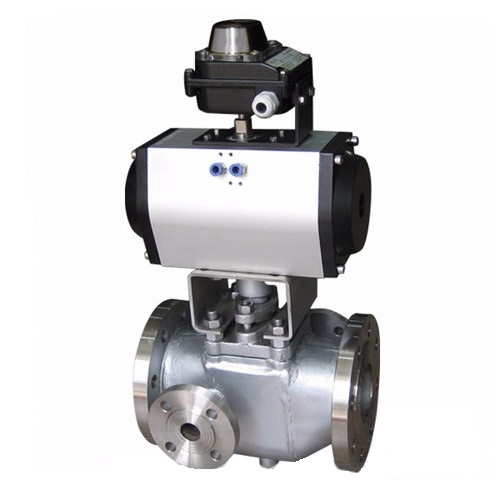

    Pneumatic jacketed plug valve is composed of pneumatic actuator(single acting or double acting) and jacketed plug valve,Pneumatic jacketed plug valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Pneumatic jacketed plug valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

    We are Pneumatic jacketed plug valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Pneumatic jacketed plug valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

  • Pneumatic jacketed plug valve Technical Performance

    Design Standard BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34
    Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
    Flange To Flange Distance As Per ANSI B 16.10
    End Connection Flanged End to ANSI B 16.5, Class 150 / 300
      PN 6 / PN 10 / PN 16 / PN 25 / PN 40
      DIN Standard / JIS Standard / IS Standard
    Manufacuring Size Range 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
    Pressure Rating of Valve 150# / 300#
      PN 10 / PN 16 / PN 25 / PN 40
    Valve Operation Manual Hand Lever / Worm-Gear Operated
      Pneumatic Actuator / Electrical Actuator
    Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)
  • Pneumatic jacketed plug valve Material

    Cast Carbon Steel : A 216 GR WCB
    Low Temperature Carbon Steel : A 352 LCB, A 352 LCC
    Alloy Steel Chrome Moly : A 217 WC6, A 217 WC9
    Austenitic Stainless Steel : A 351 CF8, A 351 CF3,, A 351 CF8M, A 351 CF3M
    Duplex Steel 2205 : A 351 CD 3MN, A 890 J92205, S31803, S32202
    Super Duplex Steel 2507 : A 351 CD4MCu, A 890 5A, S32750
    Super Duplex F55 : A 995 CD3MWCuN, S32760
    Hastelloy C-276 : A 494 CW 2M
  • How to choose Pneumatic jacketed plug valve?

    1 About the ball valve working condition
    What structure do you want to use?
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of Pneumatic jacketed plug valve
     The Pneumatic jacketed plug valve is full jacket or partial half jacket design?
     what material do you choose for valve and jacket?
