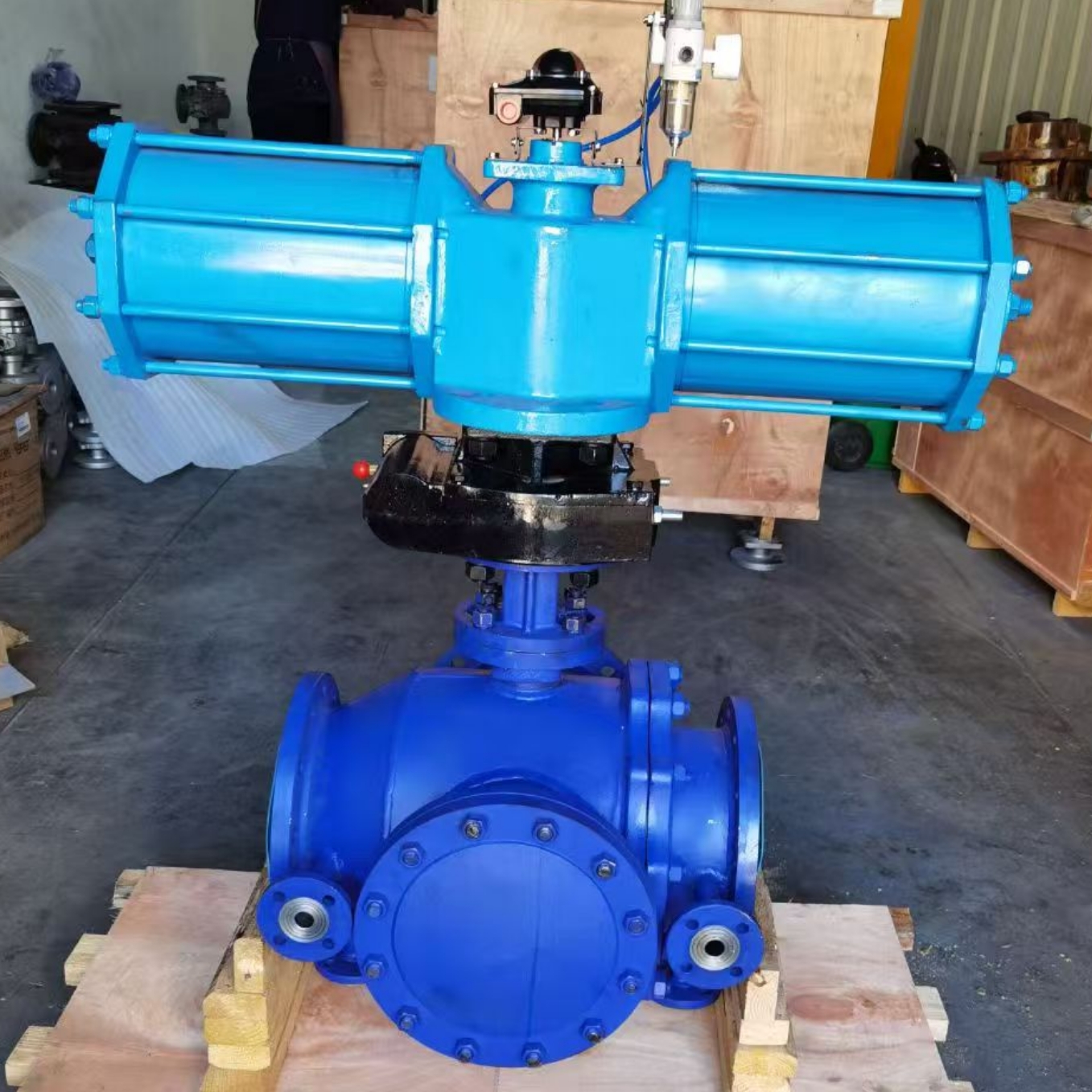

Pneumatic jacketed 3 way ball valve Technical Characteristics
Excellent Temperature Control: Full coverage jacket design, high heat utilization efficiency, uniform temperature distribution, stable temperature control effect.
Smooth Flow Path: Full bore design, low flow resistance, no dead zone, suitable for high viscosity, slurry and particle medium.
Reliable Sealing: Double seat or four-way sealing structure, suitable for high temperature, high pressure and corrosive working conditions.
Compact Structure: Integrated jacket forming, small volume, convenient installation and maintenance, long service life.
Wide Adaptability: Optional manual, pneumatic, electric actuator, compatible with automatic control system.


Pneumatic jacketed 3 way ball valveApplication Fields
Petrochemical Industry: Asphalt, crude oil, residual oil, coal tar transportation and diversion.
Chemical Industry: Resin, rubber, melt, sulfur and other easy solidification medium control.
Pharmaceutical & Fine Chemical: Syrup, wax, hot melt adhesive, insulation and sterile diversion.
Plastic & Fiber Industry: Polymer melt, auxiliary agent pipeline temperature control and distribution.


Pneumatic jacketed 3 way ball valve Selection and Installation Notes
Select L-type for flow reversing and T-type for diversion or confluence according to process requirements.
Match body material and seat material according to medium corrosion, temperature and pressure.
Confirm jacket inlet and outlet direction and connection size to ensure smooth heat medium circulation.
Keep jacket channel unobstructed during installation, avoid air block or liquid block, and check weld sealing regularly.
