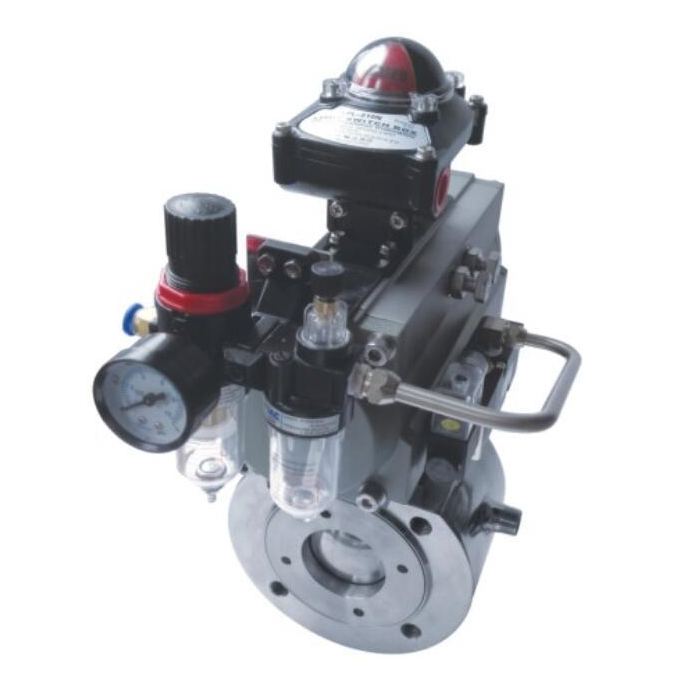

Pneumatic wafer jacketed ball valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Easy crystallizating medium
  • Temperature :20~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:
  • Pneumatic wafer jacketed ball valve description

    Pneumatic wafer jacketed ball valve is composed of pneumatic actuator( double acting or single acting) and wafer type, short length,thin body jacketed ball valve,Pneumatic wafer jacketed ball valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Pneumatic wafer jacketed ball valve is widely used in Food Process,fertilizer Industries High Viscous Process Media process application and other anti-crystallization and heating insulation industry system.

    We are Pneumatic wafer jacketed ball valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Pneumatic wafer Jacketed Ball Valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

    PNEUMATIC WAFER JACKETED BALL VALVE OPERATION:PNEUMATIC ACTUATOR WITH SOLENOID VALVE,LIMIT SWITCH,AIR FILTER OR HANDWHEEL.

    PNEUMATIC WAFER JACKETED BALL VALVE BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

  • How to choose Pneumatic wafer jacketed ball valve ?

    1 About the ball valve working condition
    What structure do you want to use? -Normally structure or wafer short length type.
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of Pneumatic wafer jacketed ball valve
     what material do you choose for valve and jacket?
