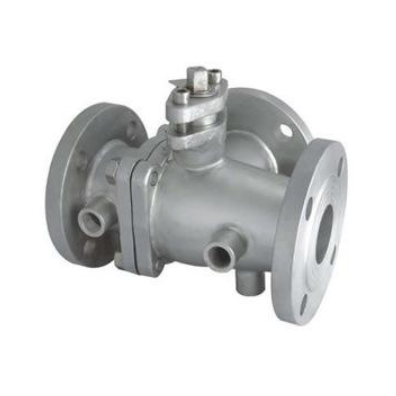

Three way jacketed ball valve description

Three way jacketed ball valve can be T port or L port  design, the client need choose the suitable strucrure according to the flow directrion.Three way jacketed ball valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Three way jacketed ball valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

We are Three way jacketed ball valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Three way jacketed ball valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

THREE WAY JACKETED BALL VALVE OPERATION: Jacketed Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.

THREE WAY JACKETED BALL VALVE BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

How to choose Three way jacketed ball valve?
