Pneumatic thermal insulation jacketed ball valve

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Description:China Pneumatic thermal insulation jacketed ball valve manufacturer,factory and supplier supply jacketed ball valve with full jacket and half jacket design.
Pneumatic thermal insulation jacketed ball valve introduction

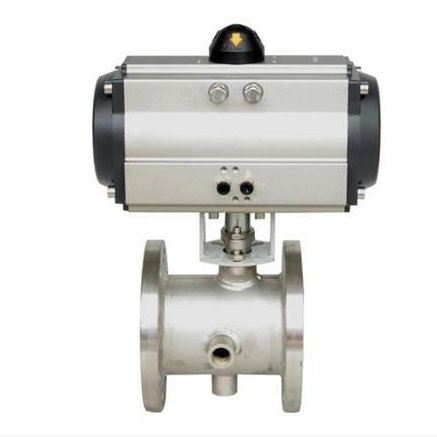

Pneumatic thermal insulation jacketed ball valve is the piston is composed of pneumatic actuators and jacket insulation ball valve, with good heat preservation and cooling characteristics, and the diameter of Pneumatic thermal insulation jacketed ball valve is consistent with the pipe diameter, and can effectively reduce the heat loss of the medium in the pipeline.Valve positioner can be equipped with input control signal (4-20MADC or 1-5VDC) air source to control the operation.Pneumatic thermal insulation jacketed ball valvecan also be equipped with travel limit switch, solenoid valve, triplet and 0.4-0.7mpa air source to realize switching operation, and send two pairs of passive contact signals indicating the switch of the valve.Pneumatic thermal insulation jacketed ball valve is mainly used in petroleum, chemical industry, metallurgy, pharmaceutical, food and other systems to transport the high viscosity medium will solidify at room temperature.As a result of Pneumatic thermal insulation jacketed ball valve adopts the integral structure, so pneumatic jacket insulation ball valve is smaller than the general ball valve, light weight, and no leakage, good sealing performance, jacket welding carbon steel tube than casting more durable pressure.

Pneumatic thermal insulation jacketed ball valve parameter
Body type:One piece or Two-stage cast body (external welded jacket insulation)
Nominal diameter DN15 ~ DN600
Nominal pressure PN1.6, 2.5, 4.0 MPa;ANSI 150, 300LB;JIS 10, 20, 30K
Flange standard GB, JB, HG, JIS, ANSI, DIN
Connection type flange type
Gland type bolt compression type
Suitable temperature -40 ~ +450℃
Sphere form "O" sphere
Flow characteristics approximate fast opening characteristics
Seal packing flexible graphite packing, etc

Pneumatic thermal insulation jacketed ball valve actuator parameter
Pneumatic actuator Type: GT, SR, ST, AT, AW series single - and double-acting pneumatic actuators
Air supply pressure:0.4 ~ 0.7mpa
Air source interfaces: G1/4", G1/8", G3/8", G1/2"
Ambient temperature: -20 ~ +90℃
Action form Single action actuator: gas closed type (B)-- valve position open (FO) when gas is lost;Gas open type (K)-- Valve position closed when gas is lost (FC)
Double-acting actuator: gas-close type (B)-- valve position is maintained when gas is lost (FL);Gas opening type (K)-- Valve position maintenance (FL) when gas is lost.
It can be equipped with accessories such as positioner, solenoid valve, air filter and pressure-relief device, position protection valve, travel switch, valve position transmitter and handwheel mechanism
Note: For detailed actuator parameters, please enter the pneumatic actuator page for reference.
