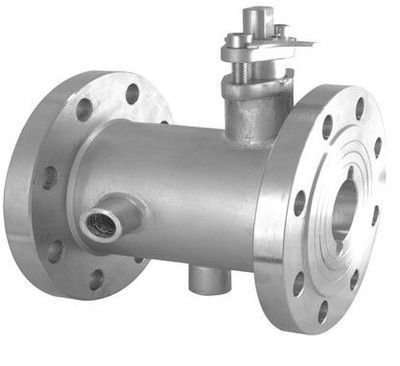

Molten Sulfur Sulphur Jacketed Ball Valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Molten Sulfur Sulphur
  • Temperature :20C°-570C°
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:
  • Molten Sulfur Sulphur Jacketed Ball Valve description

    Molten Sulfur Sulphur Jacketed Ball Valve is specially used for Molten Sulfur, Sulphur,liquid sulfur medium to sustain process media temperature during process to keep sulfur at a lower viscosity to operate valve smoothly. Molten Sulfur Sulphur Jacketed Ball Valve is widely used in High Viscous Process Media Molten Sulfur Sulphur process application and other anti-crystallization and heating insulation industry system.

    We are Molten Sulfur Sulphur Jacketed Ball Valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Molten Sulfur Sulphur Jacketed Ball Valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

    MOLTEN SULFUR SULPHUR JACKETED BALL VALVE OPERATION: Jacketed Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.

    MOLTEN SULFUR SULPHUR JACKETED BALL VALVE BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

  • Molten Sulfur Sulphur Jacketed Ball Valve Structure

    Jacketed Ball Valve structure
  • How to choose Molten Sulfur Sulphur Jacketed Ball Valve?

    1 About the ball valve working condition
    What structure do you want to use? -One piece,two pieces or wafer short length type.
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set ofMolten Sulfur Sulphur Jacketed Ball Valve
     The Molten Sulfur Sulphur Jacketed Ball Valve is full jacket or partial half jacket design?
     what material do you choose for valve and jacket?
