Jacketed ball valve with insulation jacket

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Description:China jacketed ball valve manufacturer,supplier and factory for jacketed ball valve with full or semi insulation jacket design,soft seated or metal seated structure different medium and temperature.Manual,electric,pneumatic operation is optional.
Jacketed ball valve with insulation jacket introduction
Jacketed ball valve with insulation jacket can be soft seated or metal seated design for differnt temperature medium,Jacketed ball valve with insulation jacket can be manual type, electric or pneumatic operation.Jacketed ball valve with insulation jacket is mainly used in petroleum, chemical, pharmaceutical, metallurgy, electric power and other systems to transport high viscosity medium that will solidify at room temperature.The insulation jacket of the Jacketed ball valve is welded between the sealing surface of both ends of the valve, and the side and bottom of the High temperature jacketed ball valve are provided with the standard connecting mouth of the jacket.Due to the addition of a jacket, the end connection size of the valve is one to two sizes larger than that of the same specification.The end connection type of Jacketed ball valve with insulation jacket is flanged and clamped.The jacket is free to steam through other thermal insulation media, ensuring smooth flow of viscous media through the jacketed ball valve.

Jacketed ball valve with insulation jacket specification
Product Name Jacketed ball valve with insulation jacket
1. Material WCB,CF8,CF3,CF8M,CF3M etc.
2. Size 1/2~24 inch ( DN15~DN600)
3. Structure Full jacket or partial jacket design
4. Working Pressure 150LB~600LB,PN10~PN100
5. Connection Ends Flange
6. Working Temp.  -20~450ºC, or according to customer requirements for different industry.
7. Suitable Medium  Easy to solidify, high viscosity medium
8. Operation Handle operated, Locking device is option

 Jacketed ball valve with insulation jacket performance
Jacketed ball valve with insulation jacket is also called thermal insulation ball valve,jacket ball valve, which is installed on the basis of the ball valve metal jacket, used to inject steam or other heat preservation, cold media, to ensure that the medium in the valve can work normally.Jacketed ball valve with insulation jacket according to the different structure of the ball valve, there are integral jacketed ball valve , two-piece jacketed ball valve , sandwicd-type jacketed ball valve and other structural forms,High temperature jacketed ball valve has a good heat preservation and cooling characteristics, with the valve's pain diameter and pipe diameter consistent, but also can effectively reduce the heat loss of medium in the pipeline. Jacketed ball valve with insulation jacket is mainly used in petroleum, chemical industry, metallurgy, pharmaceutical, food and other systems to transport high viscosity medium that can solidify at room temperature.

Jacketed ball valve with insulation jacket has good thermal insulation, cooling characteristics, in addition to reducing the diameter of the jacketed ball valve size and pipe diameter to, the medium flow in a straight line, small resistance, can effectively reduce the heat loss of the medium in the pipeline, therefore, easy to solidify, high viscosity of the liquid medium has excellent performance.Except the two-piece ball valve, the Jacketed ball valve with insulation jacket body adopts the integral jacket design, which can keep heat and keep cold more evenly.Weld the outer side of the jacket and body to the jacket joint with a maximum allowable steam or cold water pressure of 1MPa.

Jacketed ball valve with insulation jacket structure
High temperature jacketed ball valve structure


Jacketed ball valve with insulation jacket  application
High temperature jacketed ball valve application

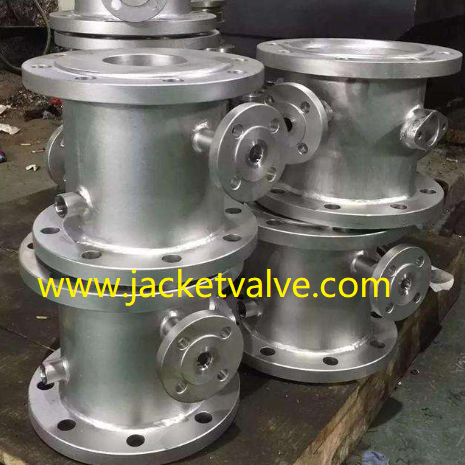

Jacketed ball valve with insulation jacket product show
