Pneumatic operated jacketed ball valve

Model:

  • Port size:DN15 x DN40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:According to client's need
  • Temperature :-40~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:Pneumatic actuator is double acting or single actuator? Whether need the pneumatic actuator accessories: Solenoild valve,air filter?

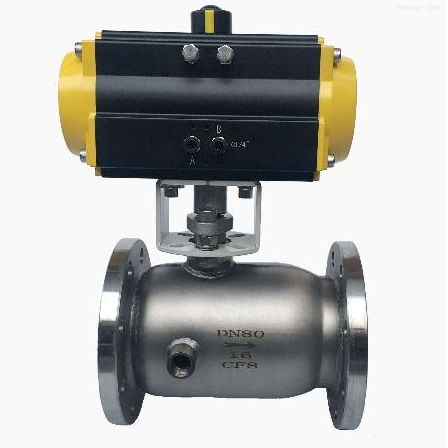

  • Pneumatic operated jacketed ball valve description

    Pneumatic operated jacketed ball valve is composed of jacked ball valve and pneumatic actuator, the pneumatic actuator of Pneumatic operated jacketed ball valve is double acting or single acting is optional. Pneumatic operated jacketed ball valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Full Jacketed Ball Valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system for automation control.

    Pneumatic operated jacketed ball valve is Fully Jacketed Ball Valve design. The jacket covers the body from one flange to the other flange. The body of Pneumatic operated jacketed ball valve is modified by adding oversize flanges. As example: 2" x 3" Pneumatic operated jacketed ball valve has the nominal bore of 2" (DN 50) and the flange size is 3"(DN 80). It allows enough space for bolting clearance.

    We are Pneumatic operated jacketed ball valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Pneumatic operated jacketed ball valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

    PNEUMATIC OPERATED JACKETED BALL VALVE OPERATION: Pneumatic actuator operated for automation.

    PNEUMATIC OPERATED JACKETED BALL VALVE BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

  • Pneumatic operated jacketed ball valve Structure

    Jacketed Ball Valve structure
  • How to choose Pneumatic operated jacketed ball valve?

    1 About the ball valve working condition
    What structure do you want to use?-One piece,two pieces body or wafer short length body.
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of Pneumatic operated jacketed ball valve
     what material do you choose for valve and jacket?
4 Pneumatic actuator requirement for the Pneumatic operated jacketed ball valve
   Pneumatic actuator is double acting or single actuator?
   Whether need the pneumatic actuator accessories: Solenoild valve,air filter?
