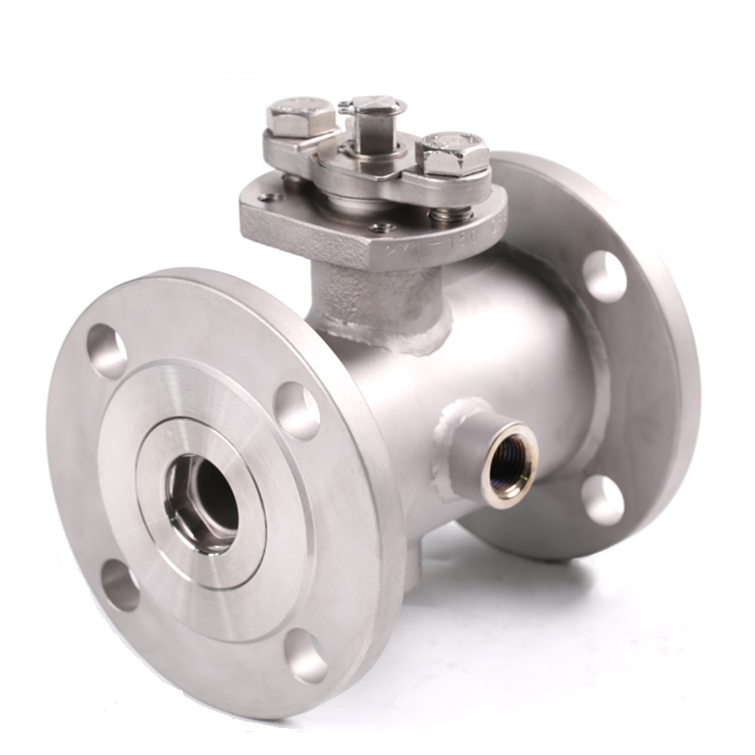

Steam Thermal Insulation Jacket Ball Valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Easy crystallizating medium
  • Temperature :20~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:
  • Steam Thermal Insulation Jacket Ball Valve description

    Steam Thermal Insulation Jacket Ball Valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Steam Thermal Insulation Jacket Ball Valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

    Steam Thermal Insulation Jacket Ball Valve is Fully Jacketed Ball Valve design. The jacket covers the body from one flange to the other flange. The body of Steam Jacketed Ball Valve is modified by adding oversize flanges. As example: 2" x 3" steam Jacketed Ball Valve has the nominal bore of 2" (DN 50) and the flange size is 3"(DN 80). It allows enough space for bolting clearance.

    We are Steam Thermal Insulation Jacket Ball Valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Steam Thermal Insulation Jacket Ball Valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

    STEAM THERMAL INSULATION JACKET BALL VALVE OPERATION: Jacketed Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.

    STEAM THERMAL INSULATION JACKET BALL VALVE BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

  • Steam Thermal Insulation Jacket Ball Valve Structure

    Jacketed Ball Valve structure
  • How to choose Steam Thermal Insulation Jacket Ball Valve?

    1 About the ball valve working condition
    What structure do you want to use? -One piece,two pieces or wafer short length type.
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of Steam Thermal Insulation Jacket Ball Valve
     The Steam Thermal Insulation Jacket Ball Valve is full jacket or partial half jacket design?
     what material do you choose for valve and jacket?
