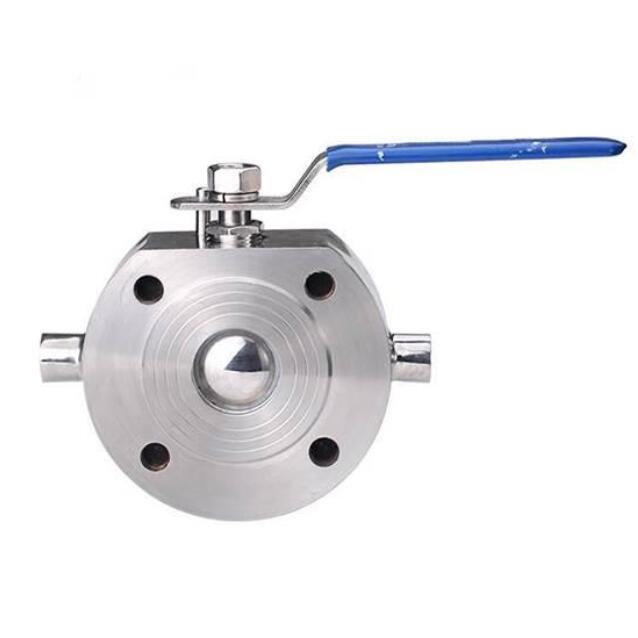

BQ71F Jacketed ball valve wafer type

Model:

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Easy crystallization medium
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Description:China BQ71F Jacketed ball valve wafer type manufacturer,factory and supplier for differnt structure jacketed ball valve.
  • BQ71F Jacketed ball valve wafer type description

    BQ71F Jacketed ball valve wafer type is short length structure, which is used for space limit place, compact stricture. BQ71F Jacketed ball valve wafer type is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. BQ71F Jacketed ball valve wafer type is widely used in Food Process,fertilizer Industries and other anti-crystallization and heating insulation industry system.

    We are BQ71F Jacketed ball valve wafer type manufacturer in size starts from DN15 (1/2″ ″) to  DN250 (10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The BQ71F Jacketed ball valve wafer type with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

    BQ71F Jacketed ball valve wafer type operation: Jacketed Ball Valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.

    BQ71F Jacketed ball valve wafer type body material: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

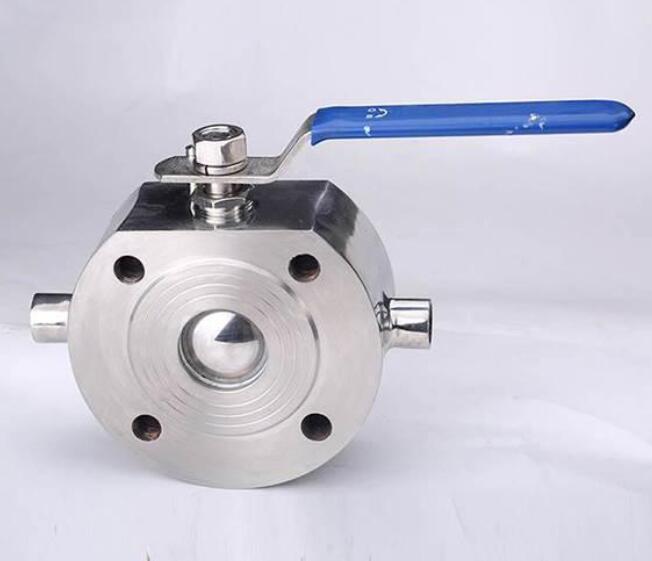

    BQ71F Jacketed ball valve wafer type

  • How to choose BQ71F Jacketed ball valve wafer type?

    1 About the ball valve working condition
    What structure do you want to use? -One piece,two pieces or wafer short length type.
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of BQ71F Jacketed ball valve wafer type?
     The steam jacketed ball valve is full jacket or partial half jacket design?
     what material do you choose for valve and jacket?
