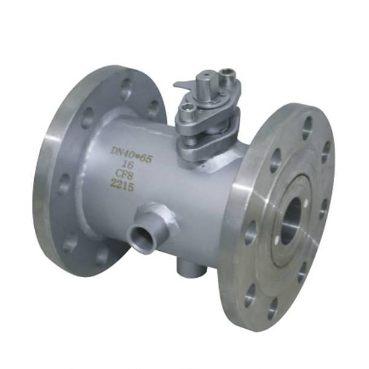

Bitumen Asphalt Pitch Jacketed Ball Valve description

Bitumen Asphalt Pitch Jacketed Ball Valve is specially used for Bitumen Asphalt Pitch medium to sustain process media temperature during process to keep Bitumen Asphalt Pitch at a lower viscosity to operate valve smoothly. Bitumen Asphalt Pitch Jacketed Ball Valve is widely used in High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

Bitumen Asphalt Pitch Jacketed Ball Valve is Fully Jacketed Ball Valve design. The jacket covers the body from one flange to the other flange. The body of Bitumen Asphalt Pitch Jacketed Ball Valve is modified by adding oversize flanges. As example: 2" x 3" Bitumen Asphalt Pitch Jacketed Ball Valve has the nominal bore of 2" (DN 50) and the flange size is 3"(DN 80). It allows enough space for bolting clearance.

We are Bitumen Asphalt Pitch Jacketed Ball Valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Bitumen Asphalt Pitch Jacketed Ball Valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

BITUMEN ASPHALT PITCH JACKETED BALL VALVE OPERATION: Jacketed Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.

BITUMEN ASPHALT PITCH JACKETED BALL VALVE BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

Bitumen Asphalt Pitch Jacketed Ball Valve Structure

How to choose Bitumen Asphalt Pitch Jacketed Ball Valve?
