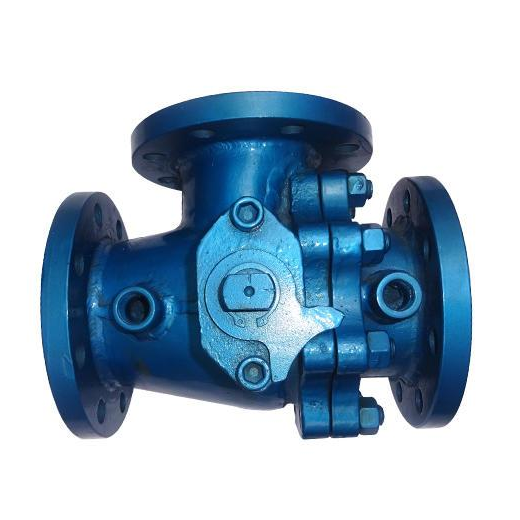

3 way steam insulation jacket ball valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Easy crystallizating medium
  • Temperature :20~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:
  • 3 way steam insulation jacket ball valvedescription

    3 way steam insulation jacket ball valve can be T port or L port  design, the client need choose the suitable strucrure according to the flow directrion.3 way steam insulation jacket ball valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. 3 way steam insulation jacket ball valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

    We are 3 way steam insulation jacket ball valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The 3 way steam insulation jacket ball valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

    3 WAY STEAM INSULATION JACKET BALL VALVE OPERATION: 3 way steam insulation jacket ball valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.

    3 WAY STEAM INSULATION JACKET BALL VALVE BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

  • How to choose 3 way steam insulation jacket ball valve?

    1 About the ball valve working condition
    What structure do you want to use? -T port or L port.
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of 3 way steam insulation jacket ball valve
     The 3 way steam insulation jacket ball valve is full jacket or partial half jacket design?
     what material do you choose for valve and jacket?
