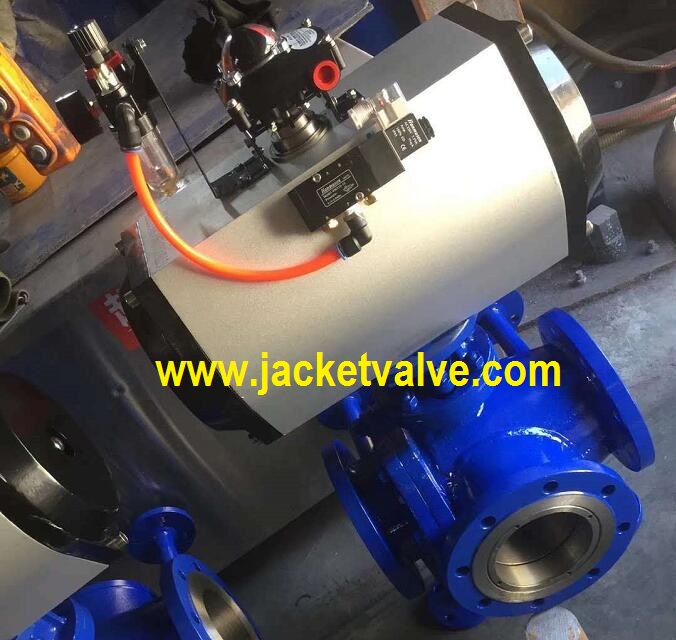

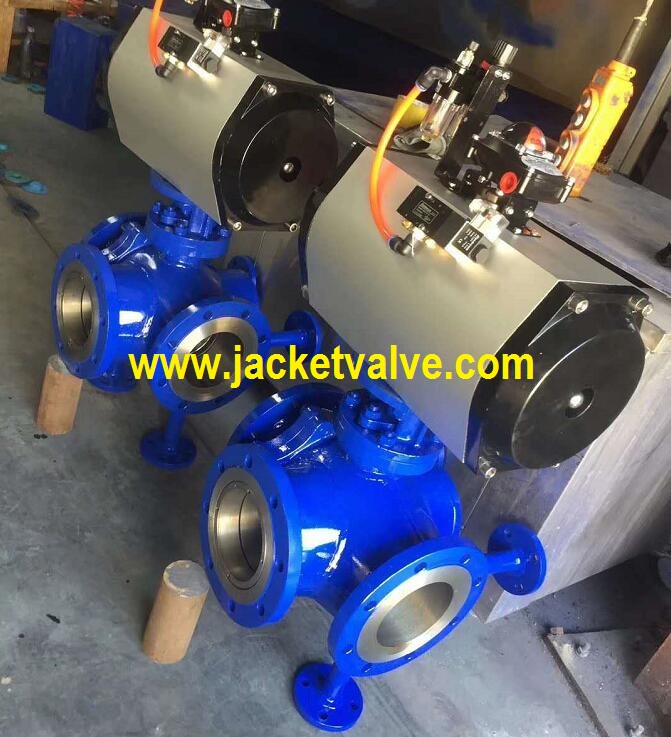

3 way pneumatic jacketed ball valve

Model:

  • Port size:1/2″ X 1-1/2″ to 6″ x10″
  • Pressure:Class 150 ~ Class 300
  • Medium:Easy crystallizating medium
  • Temperature :-40~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:
  • 3 way pneumatic jacketed ball valve description

    3 way pneumatic jacketed ball valve can be T port or L port  design according to the medium direction, the pneumatic actuator of 3 way jacketed ball valve can be double acting or single acting spring return, the client need choose the 3 way pneumatic jacketed ball valve strucrure according to the flow directrion.3 way pneumatic jacketed ball valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. 3 way pneumatic jacketed ball valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

    We are 3 way pneumatic jacketed ball valve  manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Pneumatic 3 way jacketed ball valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.


    3 way pneumatic jacketed ball valve  BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

  • How to choose 3 way pneumatic jacketed ball valve ?

    1 About the ball valve working condition
    What structure do you want to use? -T port or L port.
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of 3 way pneumatic jacketed ball valve
     The Three way jacketed ball valve is full jacket or partial half jacket design?
     what material do you choose for valve and jacket?
  • 3 way pneumatic jacketed ball valve structure

    3 way pneumatic jacketed ball valve
