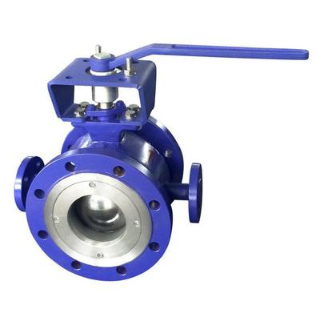

Manual V port jacketed ball valve

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Easy to solidify, high viscosity medium
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Description:Jacketed ball valve manufacturer and factory supply Manual V port jacketed ball valve in worldwide with good price, high price.
Manual V port jacketed ball valve introduction
Manual V port jacketed ball valve is V port segmented ball valve with full jacket design, Angle rotary structure. Manual V port jacketed ball valve has excellent regulation function: V port ball valve has approximately equal percent flow rates and adjustable ratios up to 300:1.The V port ball valve provide accurate control over a wide range of variations.

We are Manual V port jacketed ball valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Manual V port jacketed ball valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

Manual V port jacketed ball valve OPERATION: Manual V port jacketed ball valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.

Manual V port jacketed ball valve feature
1. Maximum flow volume: because of its flow line outside the line and full right Angle rotation control, the maximum volume is particularly high, the flow capacity is particularly large, the flow resistance is small, so you can use a smaller and more economical valve size.
2. Manual V port jacketed ball valve adopts double bearing structure, high mechanical stability, small start torque, ensure the valve has good sensitivity and induction speed.
3. Maximum reliability (safety) : the valve body as a whole structure, strong and durable, operation is not affected by pipeline pressure, and can avoid leakage of the valve body.
4. Superior sealing of metal seat: Manual V port jacketed ball valve adopts movable metal seat, with self-compensation function, excellent sealing performance and long service life
5. Super shear capacity: Manual V port jacketed ball valve adopts metal hard seal structure, V-type valve core and metal seat in the rotary process, V-type notch and seat to produce a strong shear force can cut off fiber and other impurities, and has a self-cleaning function, to avoid the phenomenon of valve stuck.
6. Manual V port jacketed ball valvee is compact, compact and light, easy to install and maintain.
