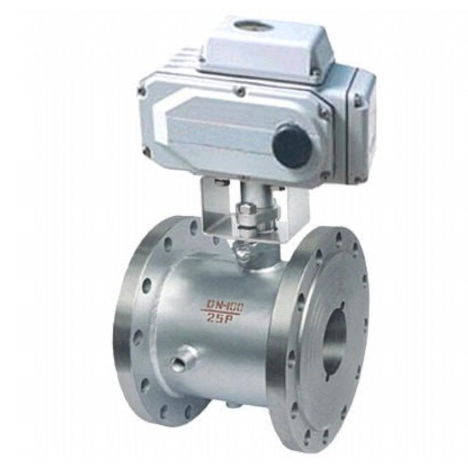

Electric actuated jacketed ball valve

Model:

  • Port size:DN15 x DN40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:According to client's need
  • Temperature :-40~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:Electric actuated jacketed ball valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system for automatic control.
  • Electric actuated jacketed ball valve description

    Electric actuated jacketed ball valve is composed of jacketed ball valve and electric actuator, the electric actuator of the jacketed ball valve voltage is 220VAC or 380VAC, Common on-off type or adjusting type function is optional. Electric actuated jacketed ball valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Electric actuated jacketed ball valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system for automatic control.

    Electric actuated jacketed ball valve is Fully Jacketed Ball Valve design,one piece, two pieces or wafer type short length structure is optional. The jacket covers the body from one flange to the other flange. The body of Electric actuated jacketed ball valve is modified by adding oversize flanges. As example: 2" x 3" Electric actuated jacketed ball valve has the nominal bore of 2" (DN 50) and the flange size is 3"(DN 80). It allows enough space for bolting clearance.

    We are Electric actuated jacketed ball valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Electric actuated jacketed ball valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

    ELECTRIC ACTUATED BALL VALVE OPERATION:  Electrical actuator operated for automation.

    ELECTRIC ACTUATED BALL VALVE BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

  • Electric actuated jacketed ball valve Structure

    Jacketed Ball Valve structure
  • How to choose Electric actuated jacketed ball valve?

    1 About the ball valve working condition
    What structure do you want to use?
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of electric actuated jackted ball valve
     what material do you choose for valve and jacket?
4 Actuator requirement for the electric actuated jackted ball valve
Actuator volatge:AC220V or AC380V
Actuator function: On-off type or adjusting type?
Explosive proof and Proction Class requirement?
