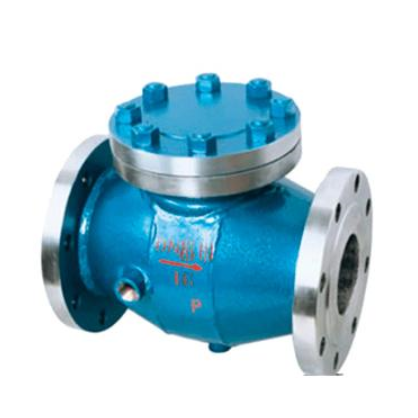

Cast steel full jacketed check valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:high viscosity medium
  • Temperature :20~450℃
  • Body material:WCB or Other material
  • Description:
  • Cast steel full jacketed check valve description

    Cast steel full jacketed check valve is also called cast steel full Jacketed Non Return Valve with swing type structure, Cast steel full jacketed check valve mostly use in application of Polymer, Bitumen, Liquid Asphalt, Coal tar, Resin, Lactum, Highly Viscous Media, Chocolate, Plasticizers, Slurry Chemical, Molten Sulfur or Sulphur.Cast steel full jacketed check valve have standard Inlet & Outlet connection for Steam or Hot Oil circulation. Jacket connection can be Threaded (BSP / NPT Female) or Flanged End.


    Cast steel full jacketed check valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Cast steel full jacketed check valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.


    We are Cast steel full jacketed check valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″) for Full jacketed design,from DN 50 (2″) to DN600 (24″) for Partial half jacketed design.The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Cast steel full jacketed check valve with very well design to help the high temperature steam or oil flow over the valve Disc& body parts to keep the media liquid.


  • Cast steel full jacketed check valve Technical Performance

    Design Standard API600/ASME B 16.34
    Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
    Flange To Flange Distance As Per ANSI B 16.10
    End Connection Flanged End to ANSI B 16.5, Class 150 / 300
      PN 6 / PN 10 / PN 16 / PN 25 / PN 40
      DIN Standard / JIS Standard / IS Standard
    Manufacuring Size Range 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
    Pressure Rating of Valve 150# / 300#
      PN 10 / PN 16 / PN 25 / PN 40
    Valve Operation /
      /
    Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)
  • How to choose Cast steel full jacketed check valve?

    1 About the gate valve working condition
    What structure do you want to use?
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of Cast steel full jacketed check valve
     what material do you choose for valve and jacket?
