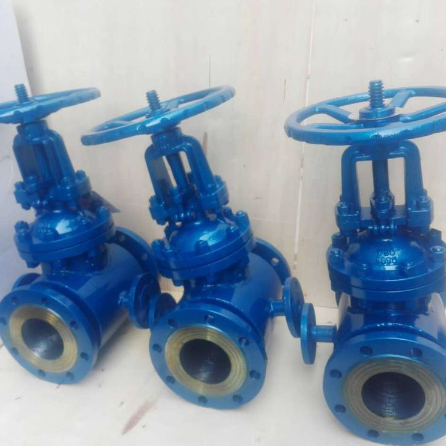

Carbon steel WCB steam insulation jacketed gate valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Easy crystallizating medium
  • Temperature :20C°-570C°
  • Body material:WCB or Other material
  • Description:
  • CF8 CF8M Stainless steel jacketed gate valve description

    Carbon steel WCB steam insulation jacketed gate valve is full jacket design with Rising Stem, Bolted Bonnet, OS & Y Type.Carbon steel WCB steam insulation jacketed gate valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Carbon steel WCB steam insulation jacketed gate valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

    Carbon steel WCB steam insulation jacketed gate valve: Carbon steel WCB steam insulation jacketed gate valve is generally supplied with manual handwheel operated, depending on valve size.we also offering gate valve with either Pneumatic or Electrical actuator operated for automation.

  • Carbon steel WCB steam insulation jacketed gate valve Technical Performance

    Design Standard API600/ASME B 16.34
    Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
    Flange To Flange Distance As Per ANSI B 16.10
    End Connection Flanged End to ANSI B 16.5, Class 150 / 300
      PN 6 / PN 10 / PN 16 / PN 25 / PN 40
      DIN Standard / JIS Standard / IS Standard
    Manufacuring Size Range 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
    Pressure Rating of Valve 150# / 300#
      PN 10 / PN 16 / PN 25 / PN 40
    Valve Operation Manual Handwheel
      Pneumatic Actuator / Electrical Actuator
    Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)
  • Carbon steel WCB steam insulation jacketed gate valve design description

    - Outside Screw and York
    - Bolted Bonnet and Pressure Seal
    - Flexible wedge, fully guided
    - Welding seat rings or Renewable seat rings
    - Rising stem and non-rising stem
    - Available with gear operator
    - Flange Ends & Buttwelding Ends
    - Low torque design, smooth surface stem.
