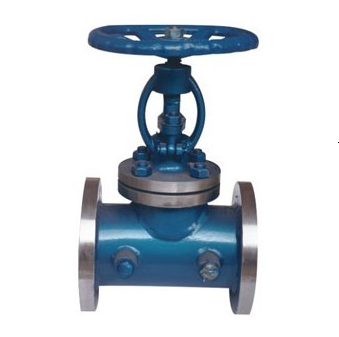

Cast steel full jacketed globe valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:high viscosity medium
  • Temperature :20~450℃
  • Body material:WCB or Other material
  • Description:
  • Cast steel full jacketed globe valve description

    Cast steel full jacketed globe valve is full jacket design with WCB cast steel body,Cast steel full jacketed globe valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Cast steel full jacketed globe valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.


    We are Cast steel full jacketed globe valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Cast steel full jacketed globe valve with very well design to help the high temperature steam or oil flow over the valve Disc& body parts to keep the media liquid.

    CAST STEEL FULL JACKETED GLOBE VALVE OPERATION: Steam Jacketed globe Valve is generally supplied with manual handwheel operated, depending on valve size.we also offering globe valve with either Pneumatic or Electrical actuator operated for automation.

  • Cast steel full jacketed globe valve Technical Performance

    Design Standard API600/ASME B 16.34
    Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
    Flange To Flange Distance As Per ANSI B 16.10
    End Connection Flanged End to ANSI B 16.5, Class 150 / 300
      PN 6 / PN 10 / PN 16 / PN 25 / PN 40
      DIN Standard / JIS Standard / IS Standard
    Manufacuring Size Range 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
    Pressure Rating of Valve 150# / 300#
      PN 10 / PN 16 / PN 25 / PN 40
    Valve Operation Manual Handwheel
      Pneumatic Actuator / Electrical Actuator
    Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)
  • How to choose Cast steel full jacketed globe valve?

    1 About the gate valve working condition
    What structure do you want to use?
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of Cast steel full jacketed globe valve
     what material do you choose for valve and jacket?
