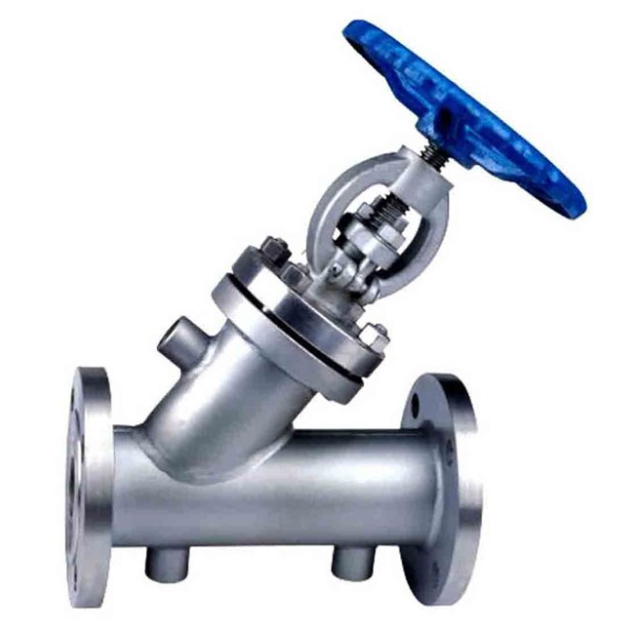

Y type jacketed globe valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:high viscosity medium
  • Temperature :20~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:
  • Y type jacketed globe valve description

    Y type jacketed globe valve is Y type Straight structure, which is easy for medium flow.Y type jacketed globe valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Y type jacketed globe valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.


    We are SY type jacketed globe valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Y type jacketed globe valve with very well design to help the high temperature steam or oil flow over the valve Disc& body parts to keep the media liquid.

    Y TYPE JACKETED GLOBE VALVE OPERATION: Steam Jacketed globe Valve is generally supplied with manual handwheel operated, depending on valve size.we also offering globe valve with either Pneumatic or Electrical actuator operated for automation.

  • Y type jacketed globe valve Technical Performance

    Design Standard API600/ASME B 16.34
    Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
    Flange To Flange Distance As Per ANSI B 16.10
    End Connection Flanged End to ANSI B 16.5, Class 150 / 300
      PN 6 / PN 10 / PN 16 / PN 25 / PN 40
      DIN Standard / JIS Standard / IS Standard
    Manufacuring Size Range 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
    Pressure Rating of Valve 150# / 300#
      PN 10 / PN 16 / PN 25 / PN 40
    Valve Operation Manual Handwheel
      Pneumatic Actuator / Electrical Actuator
    Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)
  • Y type jacketed globe valve Material

    Cast Carbon Steel : A 216 GR WCB
    Low Temperature Carbon Steel : A 352 LCB, A 352 LCC
    Alloy Steel Chrome Moly : A 217 WC6, A 217 WC9
    Austenitic Stainless Steel : A 351 CF8, A 351 CF3,, A 351 CF8M, A 351 CF3M
    Duplex Steel 2205 : A 351 CD 3MN, A 890 J92205, S31803, S32202
    Super Duplex Steel 2507 : A 351 CD4MCu, A 890 5A, S32750
    Super Duplex F55 : A 995 CD3MWCuN, S32760
    Hastelloy C-276 : A 494 CW 2M
  • How to choose Y type jacketed globe valve?

    1 About the gate valve working condition
    What structure do you want to use?
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of Y type jacketed globe valve
     The Y type jacketed globe valve is full jacket or partial half jacket design?
     what material do you choose for valve and jacket?
