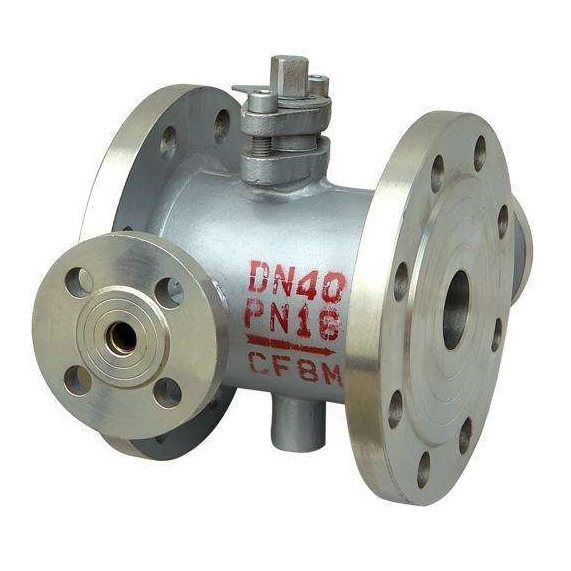

Stainless steel Jacketed Ball Valve

Model:

  • Port size:DN15 x DN 40~DN150 x DN250
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Easy crystallizating medium
  • Temperature :20~450℃
  • Body material:CF8,CF8M or other material
  • Description:Jacketed ball manufacturer and supplier produce Stainless steel Jacketed Ball Valve with full jacket or half jacket structure for different industries.
  • Stainless steel Jacketed Ball Valve description

    Stainless steel Jacketed Ball Valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Stainless steel Jacketed Ball Valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

    Stainless steel Jacketed Ball Valve is Fully Jacketed Ball Valve design. The jacket covers the body from one flange to the other flange. The body of Stainless steel Jacketed Ball Valve is modified by adding oversize flanges. As example: 2" x 3" Stainless steel Jacketed Ball Valve has the nominal bore of 2" (DN 50) and the flange size is 3"(DN 80). It allows enough space for bolting clearance.

    We are Stainless steel Jacketed Ball Valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
    The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Stainless steel Jacketed Ball Valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

    STAINLESS STEEL JACKETED BALL VALVE OPERATION: Jacketed Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.

    STAINLESS STEEL JACKETED BALL VALVE BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.

  • Stainless steel Jacketed Ball Valve Structure

    Jacketed Ball Valve structure
  • How to choose Stainless steel Jacketed Ball Valve?

    1 About the ball valve working condition
    What structure do you want to use? -One piece,two pieces or wafer short length type.
    What is the medium of pipeline?
    Medium through pipeline working pressure ?
    Medium through pipeline working temperature?
    Pipeline connection size?

    2 About the jacket working condition
    What is the medium through Jacket, Steam or hot oil?
    Medium through jacket working pressure ?
    Medium through jacket working temperature
    Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
    Jacket coupling size?  NPS1/2’’ is ok?

    3 Structure and material for the whole set of Stainless steel Jacketed Ball Valve
     The Stainless steel Jacketed Ball Valve is full jacket or partial half jacket design?
     what material do you choose for valve and jacket?
