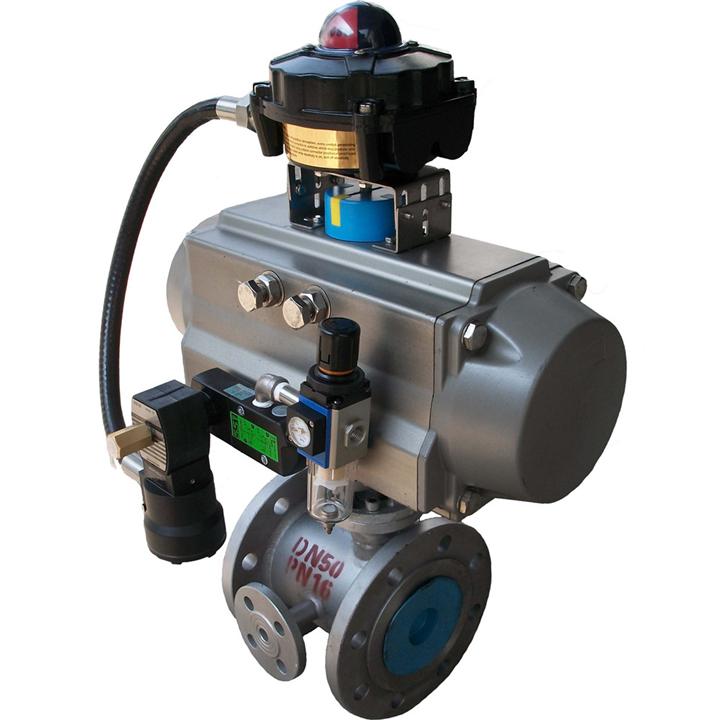

Pneumatic jacket sleeved ball valve

Jacketed Valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：DN15 x DN 40～DN150 x DN250
Pressure：PN16 ~ 25 CLASS 150/300LB
Medium：high viscosity medium
Temperature :20～450℃
Body material：WCB CF8 CF3 CF8M CF3M or others
Description：

Pneumatic jacket sleeved ball valve description

Pneumatic jacket sleeved ball valve is composed of jacked ball valve and pneumatic actuator, the pneumatic actuator of Pneumatic jacket sleeved ball valve is double acting or single acting is optional.Pneumatic jacket sleeved ball valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Full Jacketed Ball Valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system for automation control.

PNEUMATIC JACKET SLEEVED BALL VALVE BODY MATERIAL: Cast Carbon Steel (WCB), Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel (D2207), Hastelloy (HC-C22/HC276), Alloy 20 (CN7M) etc.
How to choose Pneumatic jacket sleeved ball valve?
1 About the ball valve working condition
What structure do you want to use?-One piece,two pieces body or wafer short length body.
What is the medium of pipeline?
Medium through pipeline working pressure ?
Medium through pipeline working temperature?
Pipeline connection size?

2 About the jacket working condition
What is the medium through Jacket, Steam or hot oil?
Medium through jacket working pressure ?
Medium through jacket working temperature
Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
Jacket coupling size? NPS1/2’’ is ok?

3 Structure and material for the whole set of Pneumatic jacket sleeved ball valve
what material do you choose for valve and jacket?

4 Pneumatic actuator requirement for the Pneumatic jacket sleeved ball valve
Pneumatic actuator is double acting or single actuator?
Whether need the pneumatic actuator accessories: Solenoild valve,air filter?
